USER TIPS - More Details
When You Complete A Test, Then What?

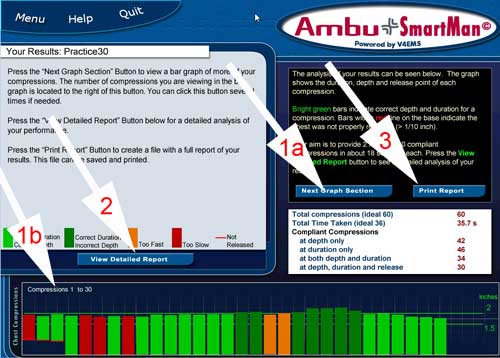

When you complete a practice or a test, SmartMan will give you several options. Your screen will be similar to below:

SmartMan detail of results

1a Next Graph Section. Click on this button to scroll through each set of compressions. 1b will display the compressions which are being displayed.

2 View Detailed report. Click on this button to see a more details breakdown of the skills performed. It will look like this.

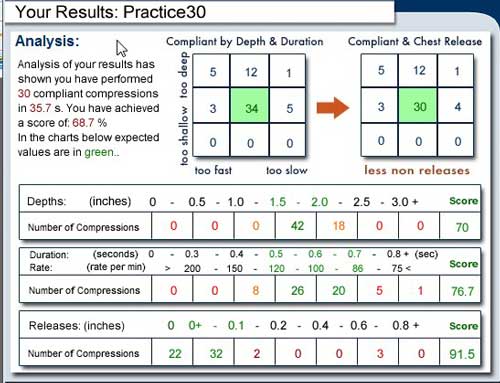

SmartMan detail on skills

At the top it will tell you which test it is reporting. In the above example, the is a practice for 30 compressions. The 2 nine box matrices contain a summary of how well all of the skills were performed. In the center green box in the matrix on the left, that is how many compressions were performed correctly both for correct depth and correct duration. In the center green box in the matrix on the right, this is how many compressions were performed correctly for correct depth, correct duration and had full release.

Below the matrices further the charts provide further detail on each skill. The data on each skill is grouped and a percentage score for that skill only is provided at the end. The target scores in each skill area are in green.

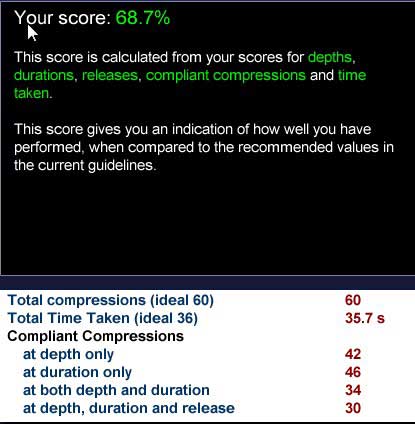

SmartMan overall score

This shows an overall percentage score and represents how much of the total skill set was performed according to the current guidelines. Each of the sub skills is weighted to a arrive at the percentage. Below this are the numbers performed correctly for each skill and then those that were performed correctly.

3 Print Report. Click on this button to produce an .rtf report of your results. This will open in your default word processor and can be saved in Word format or whatever format you wish. Once saved it can be sent via email, saved or printed as any other file. There is more information in the printed report. For detail on this, go here.
